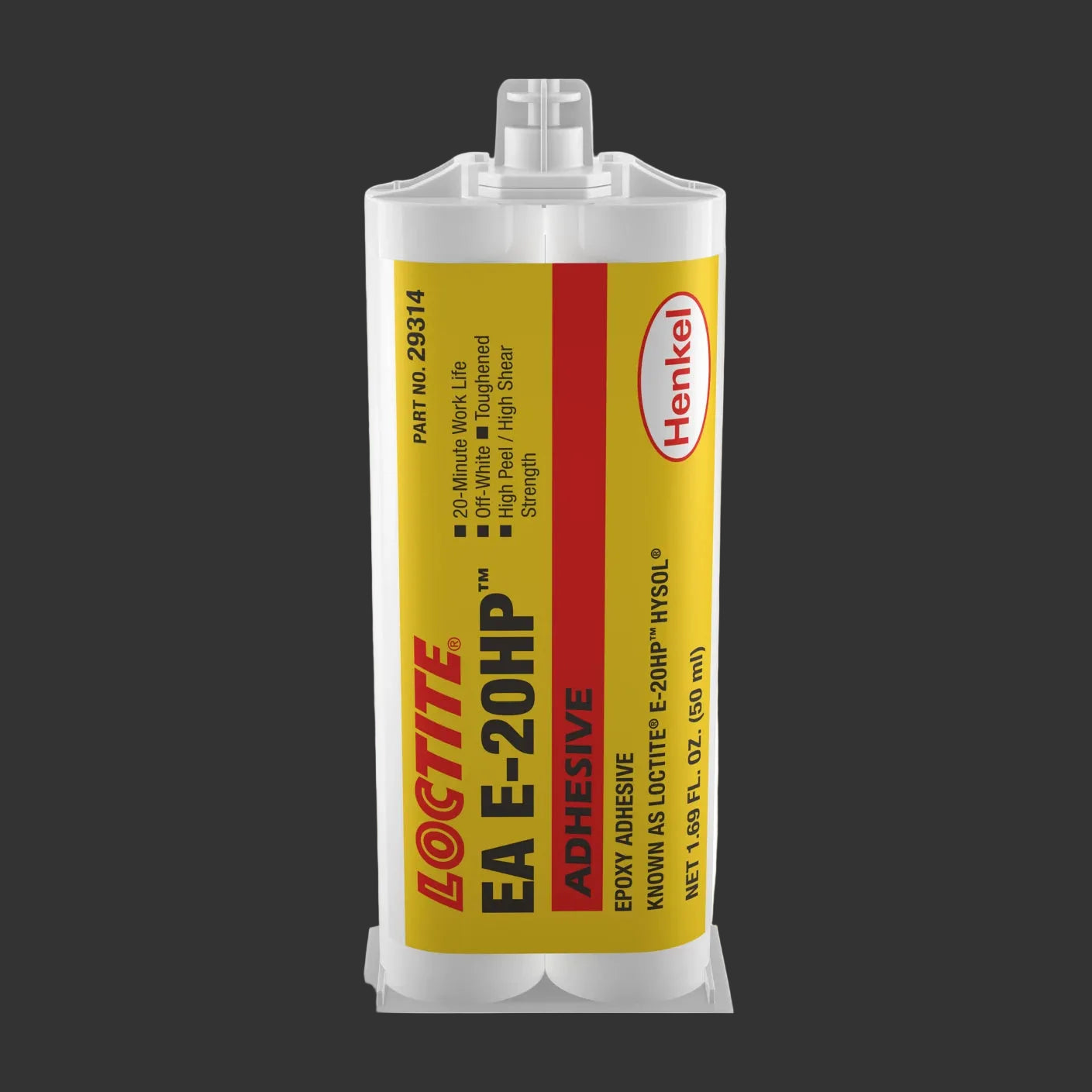

Hysol E20HP

$19.99
$19.99
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

2 hour work life, 24 hour full cure! We use it all the time! Great middle ground adhesive with amazing strength!

This high impact-strength adhesive is toughened to meet demanding and versatile applications, including metal-to-metal and magnet bonding.
LOCTITE® EA E-20HP is a 2-part, high impact- and humidity-resistant structural bonder. Once mixed, it cures at room temperature to form a tough bond line with high peel resistance. It has a very high shear strength of 33 N/mm², is resistant to a wide range of chemicals and solvents, and withstands temperatures up to 150°C (302°F). Ideal for metal-to-metal bonding, it can also be used as a magnet bonder for surface and interior permanent magnets (SPM & IPM), and is an excellent electrical insulator. Bonds a wide variety of plastics, metals, dry concrete and architectural materials. Typical applications include marine in-line shaft generators.
  • High impact and high humidity resistance
  • Bonds variety of substrates including magnets
  • Temperature resistance up to 150°C (302°F)
  • Dual cure: room temperature, heat
Brand LOCTITE
Alternate Product Name Hysol E-20HP
Compatible Applicator720228; 267452; 476898
Compatible Applicator (Grainger Part Number) 3NVL4
Compatible Mixer Tip (Grainger Part Number) 4UK16
Container Type Dual-Cartridge
Cure Method Ambient
Cured Color Off-White
Features High Peel Resistance; High Shear Strength; Industrial Grade; Medium Viscosity
Full Cure Time 24 hr
Functional Cure 2 hr
Hardener Color Yellow
Hardness at Full Cure 80 Shore D
Included Components Resin and Hardener
Interior/Exterior Interior Only
Low Odor No
Marine Grade Not Specified Marine Grade
Materials Bonded Concrete; Metal; Plastic; Wood
Maximum Performance Temperature 250 °F
Maximum Viscosity 30,000 cps
Minimum Performance Temperature -65 °F
Minimum Viscosity 30,000 cps
Mixing Ratio2:1
Non-Sagging No
Primary Applications General Purpose
Resin Color Light Yellow
Resin Type Epoxy
SeriesE-20HP
Shear Strength 3,270 psi
Standards ASTM C881; ASTM C882-99; ISO 13445; ISO 4587; ISO 527-2; ISO 868
Tensile Strength 2,175 psi
Total Volume 50 mL
VOC Content Weight Less Than 10 g/L
VOC Content Weight Percentage 0%
Working Time 20 min
Brand & Series LOCTITE E-20HP
UNSPSC31201607
Country of Origin USA (subject to change)
