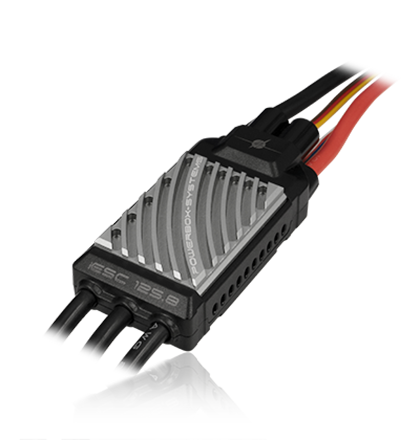

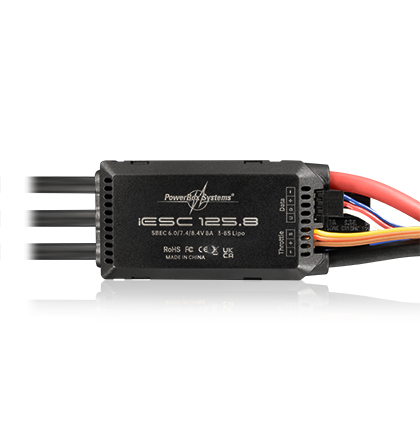

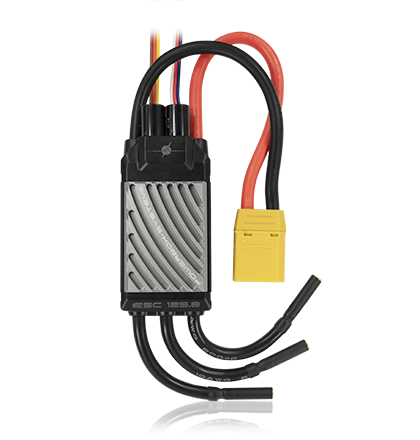

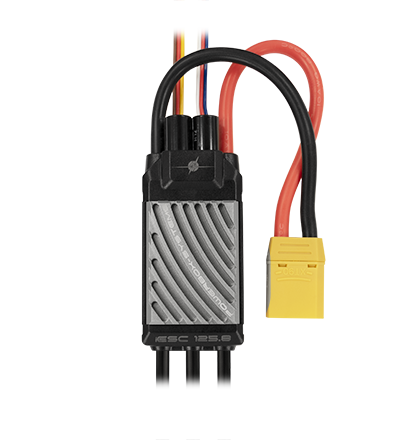

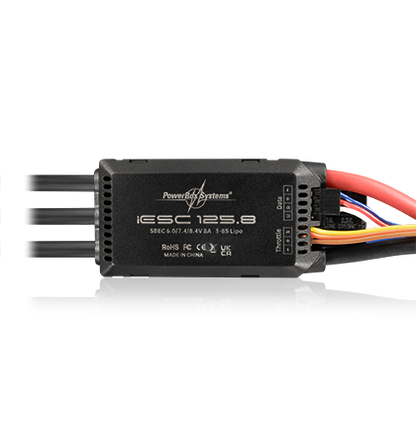

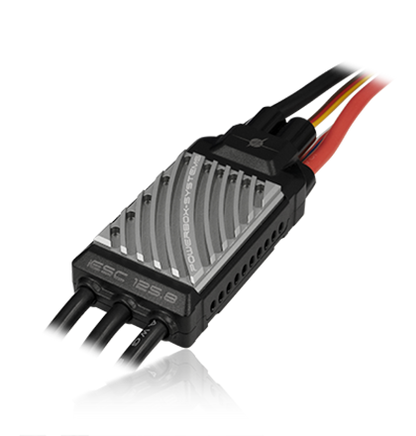

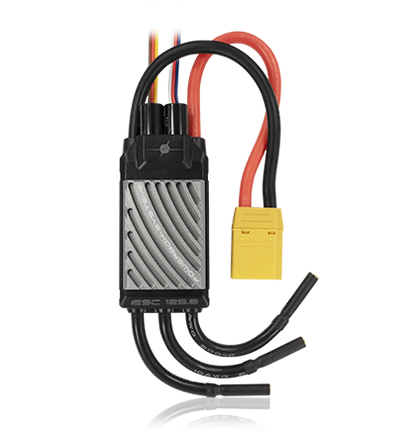

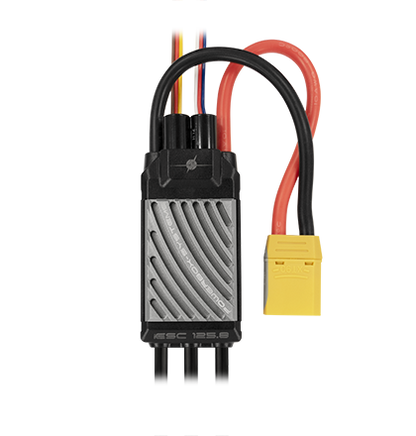

iESC 125.8

Item no. 5110

The iESC is based on the latest generation of controllers for brushless motors, with a 32-Bit processor and expanded functions such as telemetry and the ability to adjust settings directly from the transmitter.

Features

High-performance brushless speed controller with 32-bit technology
Latest generation of MosFets for reduced power loss and maximum
possible reliability
Telemetry for PowerBox, Jeti and Futaba radio control systems
Fixed-wing and Helicopter modes
Adjustable direction of rotation, timing, battery type, freewheel, start-up
current and other parameters
Adjustable regulatory parameters in helicopter mode
Parameters directly adjustable from PowerBox and Jeti transmitters
Parameters adjustable using LCD programming device for all systems
8A BEC
Power-on self-test checks motor, throttle position and voltage
Ingenious case design ensures optimum cooling

Technical Data

Operating voltage	3s - 8s
Maximum load current	125A/135A Continous/Peak
Output voltage	6.0V/7.4V/8.4V BEC
Signal input	PWM
Supported RC systems	PowerBox, Jeti, Futaba, others without telemetry
Supported telemetry systems	P²-BUS, EX-BUS, S.BUS2
Dimensions	88 x 38 x 22 mm
Weight	133g

Temperature range

-20°C to +85

Set content

• 1x iESC 125.8
• Instruction manual in German and English

Product description

The iESC is based on the latest generation of controllers for brushless motors, with a 32-bit processor and expanded functions such as telemetry and the ability to adjust settings directly from the transmitter.

The high-performance micro-processor ensures smooth running for brushless motors with up to 40 poles.

Brake power, motor timing, direction of rotation, BEC output voltage, freewheel, helicopter mode and much more can be adjusted directly from a PowerBox or Jeti transmitter.

This means that set-up boxes and plug-injumper cards are now a thing of the past.

The iESC provides a comprehensive set of telemetry data for PowerBox, Jeti and Futaba transmitters, including battery voltage, current, consumed capacity, rotational speed and controller temperature.

A high-performance 8A BEC, which supplies current to the receiver by means of two 0.5mm²
