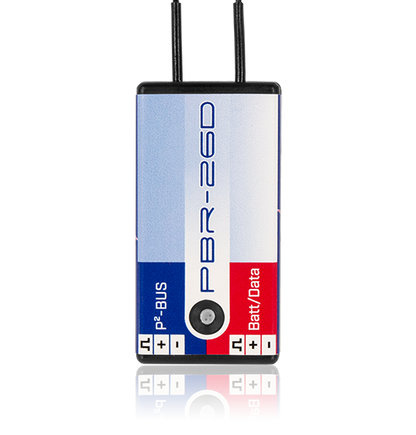

PBR-26D

Description

Five different receivers are available to match the PowerBox CORE:

PBR-9D
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.

PBR-7S
This is a seven-channel receiver with a single receiver circuit. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.

PBR-5S
This is a five-channel receiver with a single receiver circuit and an integral Chip aerial. The unit features a P²-BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models.

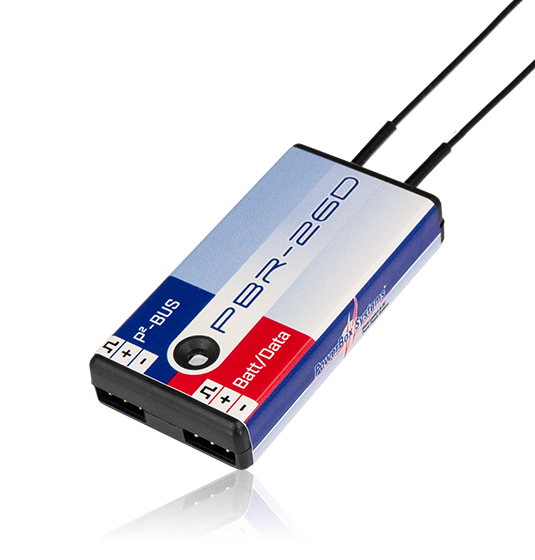

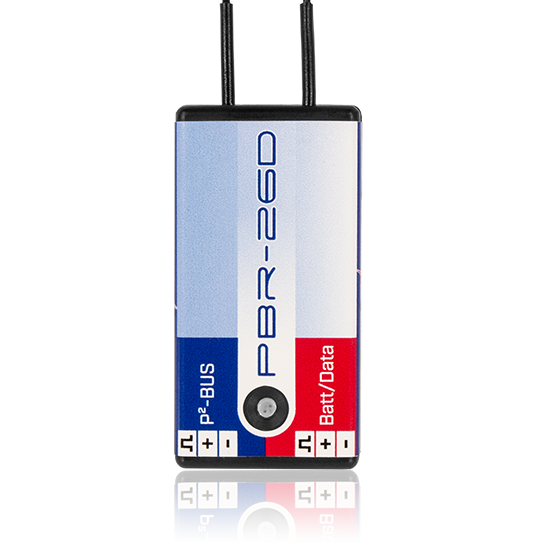

PBR-26D
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.

PBR-8E
This is a simple eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and will provide telemetry data for battery voltage and RF-data.

With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected!

Features

• 26 Channel 2.4GHz Receiver
• Two independent redundant receiver circuits
• Extreme interference rejection
• Ultra-long range
• No servo outputs; intended as receiver unit for PowerBox or FBL systems
• Option of iGyro SAT
• Integral telemetry / servo bus (P²BUS)
• High-performance real-time telemetry
• Reception quality and airborne battery voltage available via telemetry as standard
• Auxiliary output can be configured as serial interface (S.BUS or SRXL)
• Parameters for all functions can be set from the transmitter

Technical data
