26 Channel 2.4GHz Receiver

item. 8242

Product description

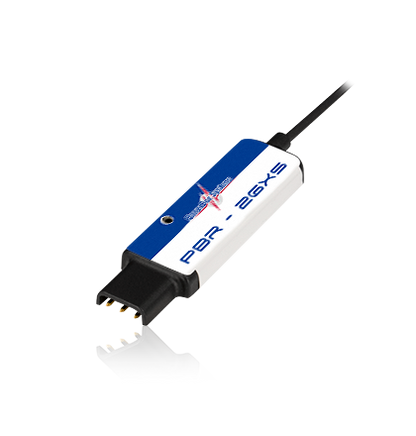

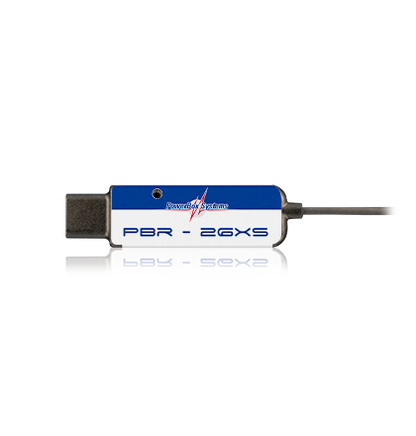

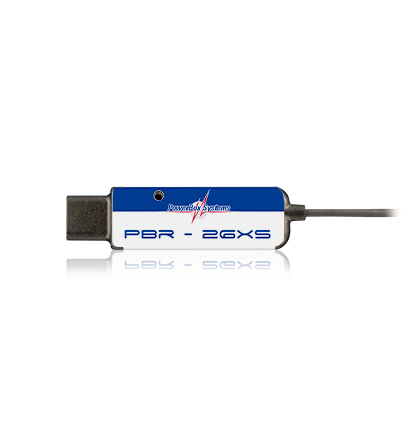

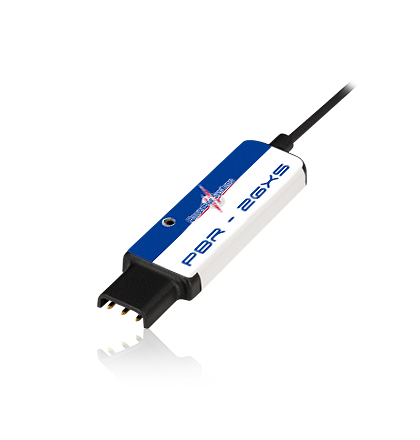

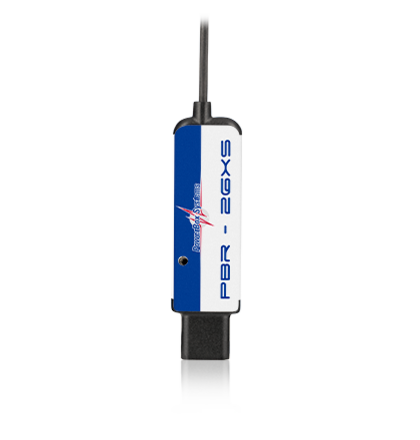

The PBR-26XS serves as a small receiving unit for any PowerBox system, or as an external expansion receiver for PBR receivers - see installation note below. For optimum reception the PBR-26XS can even be installed in a slim fin, since it is only 4mm thick.

The PBR-26XS connection communicates PPM12 and S.BUS as well as PowerBox protocols, such as P²-BUS and FastTrack Out, which means that the receive unit can also be used with third-party flight simulators or helicopter gyro systems.

Features

• 26 channels 2.4 GHz receiver
• Reception with extreme resistance to interference
• Extreme range
• The ideal receiving unit for PowerBox or FBL systems
• Integral telemetry and servo bus (P²BUS)
• High-performance real-time telemetry
• Reception quality and battery voltage permanently available via telemetry
• Includes various protocols, such as P²-BUS, FastTrack, S.BUS, SRXL, PPM12
• Parameter settings for all functions from the transmitter

Installation Note:

To use the PBR-26XS as an external expansion/satellite receiver for PBR receivers, proper settings are critical. The unit is connected to the FastTrack/Data port of the PBR master receiver, and you MUST set both the master receiver and the 26XS Data Out to the FastTrack setting in the receivers' menu accessed from the transmitter.
