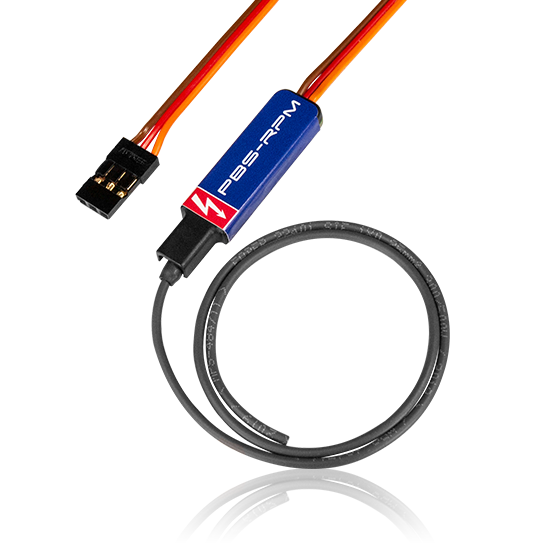

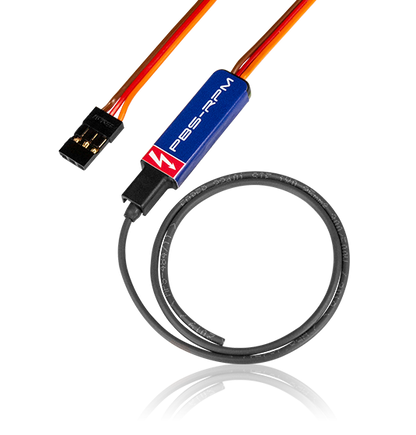

PBS-RPM



Regular price $42.12
Sale price $42.12 Regular price

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Sold out
Description

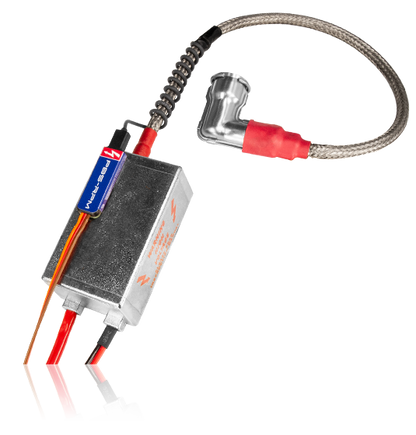

Installation is quick and simple: the sensor lead attached to the PBS-RPM is simply wound round one of the ignition system’s high-voltage leads. The field strength of the high voltage is sufficient to supply accurate rotational speed information to the sensitive detector in the PBS-RPM. The unit can be used with all types of engine - two-stroke and four-stroke.

The PBS-RPM is Plug’n’Play for the CORE telemetry system, but can also be switched for use with Jeti, M-Link and HoTT using the PowerBox Terminal program.

Features
  • Rotational speed up to 10,000 rpm
  • Ultra-simple to install
  • Accurate rev-count detection
  • For two-stroke and four-stroke engines
  • Compact design
  • Low weight
  • Supports the following telemetry systems: PowerBox Core P²BUS, Jeti EX-Bus, Multiplex M-Link, Graupner HoTT
Technical data
Operating voltage 4.0V - 9.0V
Current drain Power-on state max. 20mA
Supported RC systems PowerBox, Jeti
Dimensions 40 x 10 x 4 mm
Weight 5g
Temperature range -30°C to +85°C
