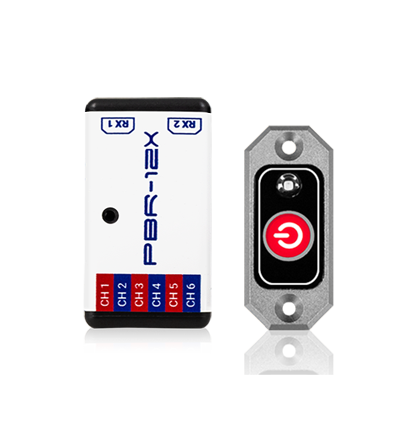

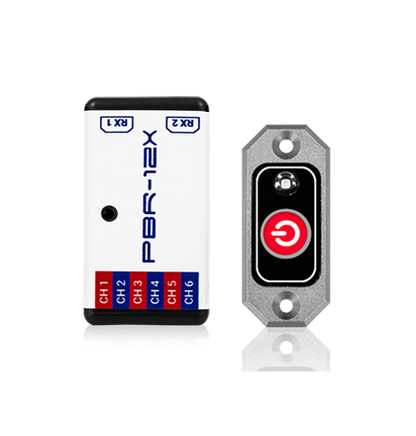

Powerbox PBR-12X

Product Description

Ultra-compact servo distributor with electronic switch and high-current power supply

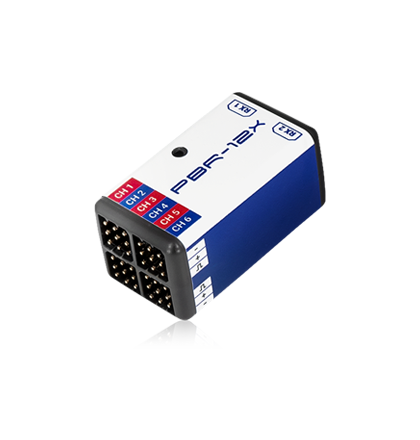

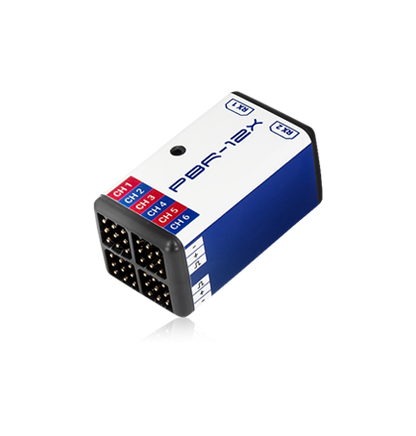

The PBR-12X is ideal for use in any model where space is limited, but where a large number of channels is required. The square arrangement of the servo sockets allows the PBR-12X to fit even in very narrow fuselages, such as those of, F5J- and F3B-gliders.

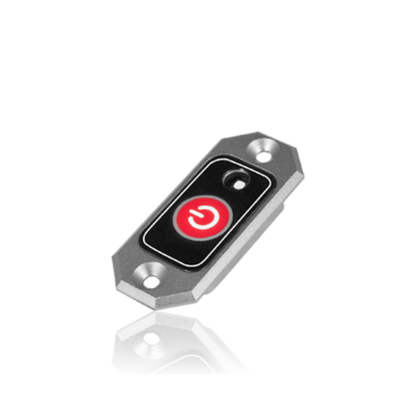

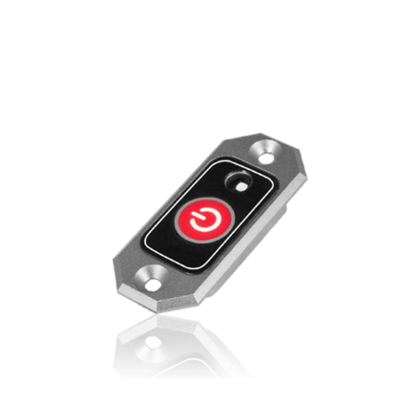

The integral electronic switch is operated using our MicroSwitch. If there is no space for this, the PBR-12X can be activated simply by plugging in or disconnecting the battery, as it stores the last switched state.

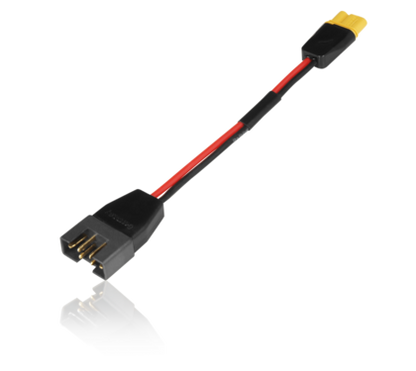

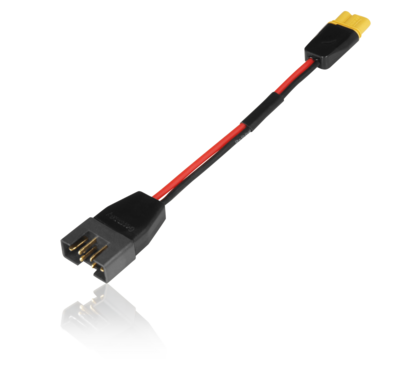

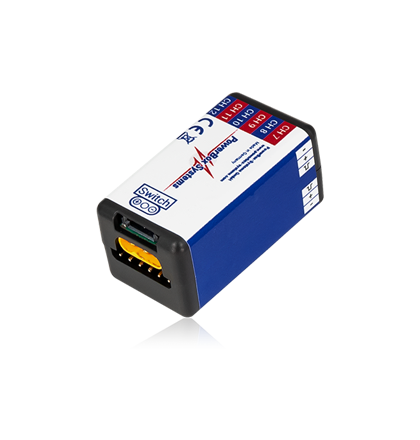

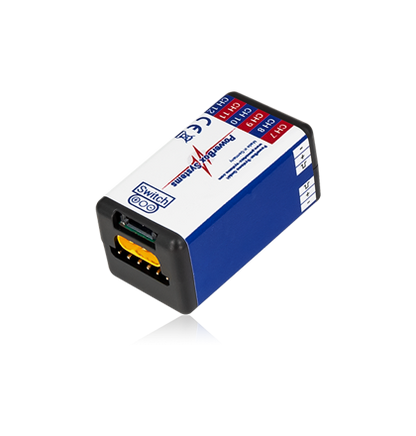

The unit features an integral high-current input with a compact MR30 connector in order to cope reliably with the current drain of twelve servos. An MR30 to MPX adapter is included in the set.

Any supported system's receiver with a bus output can be used as the receiving component (Note for Spektrum- SRXL2 satellite receiver only). The unit automatically detects the bus system to which it is connected, which means that no set-up work is required apart from setting the fail-safe positions. Two receivers can be connected to form the basis for a redundant receiving system. If the PBR-12X detects lost data packets from the first receiver, they are replaced with the data from the second receiver; there is no loss of data.

The advantage of separating the receiving section from the servo output is that the receiving component can be installed in the optimum location in the model. For example, if your model has a high carbon fiber content in the area of the wing - fuselage junction, you can install the receiver in the fin.

The PBR-12X supplies telemetry data to all the listed radio control systems. In addition to battery voltage, the telemetry output includes current and consumed capacity. Reception data, such as lost frames or holds, are also delivered to most systems.

Features

12 channels
Electronic switch
MR30 high-current input
Two serial inputs for the receiving system
Automatic RC system detection
Telemetry data for PowerBox P²BUS, Jeti Ex-BUS, Spektrum, and Futaba S.BUS2
Transfer of voltage, current, capacity, lost frames and holds
User-variable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
All features can be controlled from PowerBox and Jeti transmitters
All systems can control unit via Mobile Terminal or PowerBox-USB
Servo feedback current suppression
Machined and anodized aluminum switch case
Space-saving design
Ultra-low weight

Technical Data

Operating voltage 4.0V - 9.0V
Power supply 2S LiPo/LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 25mA
Current drain Standby 20μA
Maximum load current Duration 12A (< 30s: 20A)
Supported RC systems Core P²BUS, Jeti Ex-Bus, Spektrum SRXL2 (SPM 4651T recommended), Futaba S.BUS2
Receiver redundancy SRS
Channels 12
