PowerBox iServo HVC.45 incl. Metal Single Horn

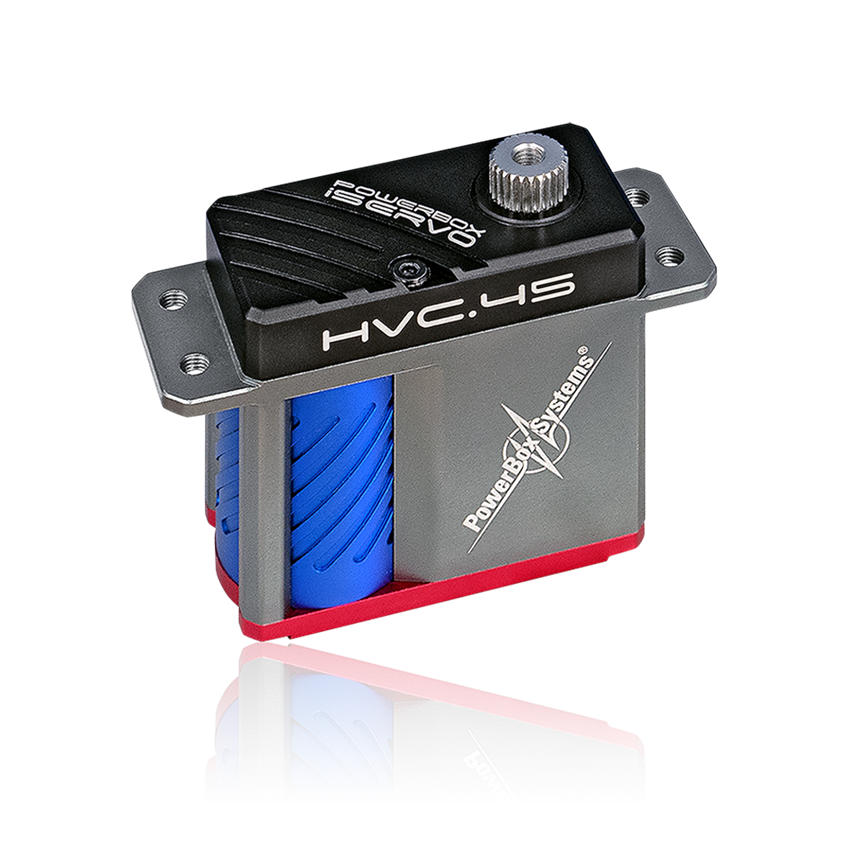

PowerBox iServo HVC.45

45 KG*CM Torque @ 8.2V

IN STOCK NOW EXCLUSIVELY AT POWERBOX AMERICAS

Our proprietary servo is now available! This was designed from the ground up, not a re-branded servo that does what we advertise because we made sure of it!

The PowerBox iServo HVC.45 has been completely developed according to our specifications. The housing design alone indicates that the new iServo is something special. Top quality, maximum durability and, above all, maximum precision were the top priorities during development.

The PowerBox iServo HVC.45 was designed in coreless technology for high starting torque, maximum position accuracy and rock-solid holding accuracy. In conjunction with a high-precision Hall sensor, a special control algorithm has been developed that is unparalleled in terms of positioning speed. The PowerBox iServo HVC.45 does not overshoot when reaching the target position. The largest possible ball bearings on the 8 mm output shaft and solid gears give our high-end servo the necessary durability.

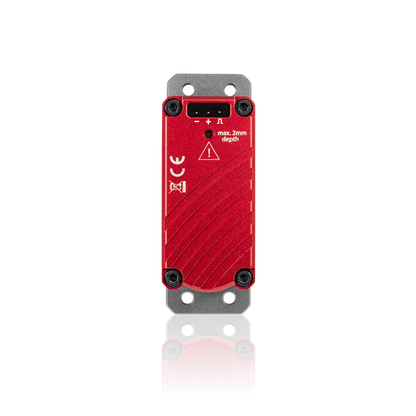

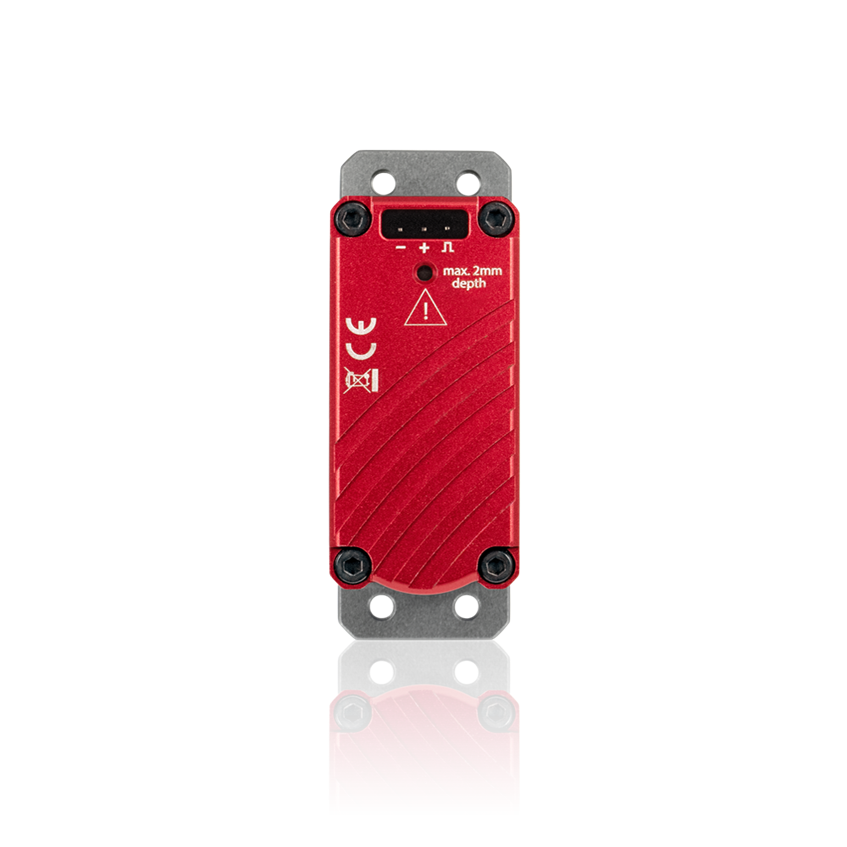

The connection for the patch cable disappears completely into the housing and is secured with a screw-on retaining clip. Cutting cables and soldering extensions is therefore a thing of the past.

Electronically, the PowerBox iServo HVC.45 has something unique to offer: for the first time, two large capacitors are built into the servo. This effectively prevents reverse currents and, above all, provides energy for the motor when current peaks have to be absorbed due to the cable length.

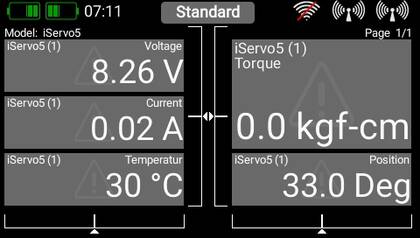

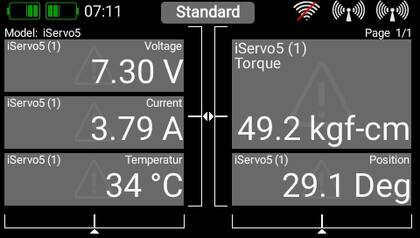

The software puts the new iServo at the forefront of what is technically feasible. The PowerBox iServo HVC.45 not only works with the PWM standard, but also with the widely used S.BUS. However, the full functionality of the iServo is utilized with the P²-BUS. The P²-BUS provides all telemetry data in real time on the transmitter display. In addition, the servo can be fully parameterized via the transmitter.
The setting options are huge: servo travel (±5000°), current limiting, holding characteristics, start-up characteristics and much more.

The settings can be made not only via our PowerBox transmitters, but also with the Mobile Terminal!

FEATURES

+ Ultra-precise High-Torque Servo
+ Advanced Coreless Technology
+ High resolution Hall Sensor
+ Large heavy duty ballbearings
+ Large heavy duty gears
+ Supports PWM, P²-BUS and S.BUS
+ Telemetry data with P²-BUS
+ Wide options for parameter programming
+ Internal capacitors to absorb feedback current
+ Internal connector with screw locking
+ Outstanding design
+ Designed in EU

SPECS
