Premium MAXI servo leads

THE BEST WIRE ON THE PLANET IS BACK!!!!!

Due to limited supply, we are only offering up to 100 meter spools at this time.

The Premium™ MAXI servo cable is the thicker variant of the familiar Premium™ cable with a conductor cross-section of 0.35mm². In this case ‘thicker’ means that the current-bearing positive and negative conductors have a cross-sectional area of 0.5mm², while the signal conductor’s cross-section is 0.3mm² in order to save weight. This makes the Premium™ Plus cable ideal for installations where relatively long leads have to be deployed in the wing or fuselage for high-performance servos.

This insulation produces a weight reduction of about 30% compared with the conventional PVC.

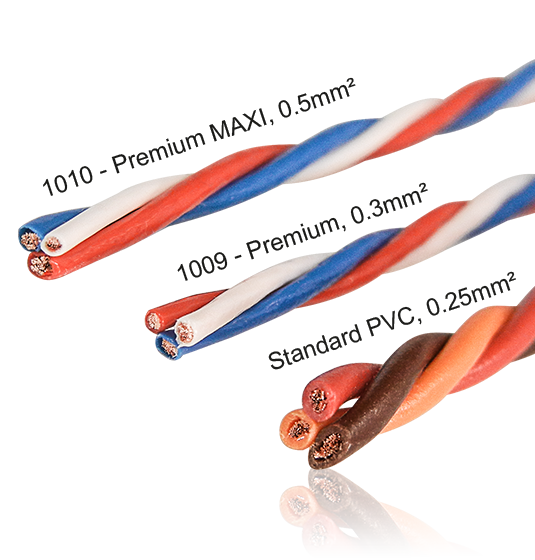

For comparison: in spite of its larger cross-section, the 0.5 mm² Premium MAXI cable offered here is lighter than standard 0.25 mm² PVC cable.

The insulation is fire resistant, and its heat resistance is much higher than the usual PVC.

PowerBox Premium MAXI cable is available loose or in bundles. If you need different lengths, please contact us for a quote.

Features

• 2x 0.5mm² cross section (red and blue)
• 1x 0.3mm² cross section (white)
• 30% weight saving
• only 14g/m
• fire resistant
• robust isolation
• employed in full-size aviation
